Samba 4

This document explains how to implement a Linux machine as an Active Directory controller.

Previous steps#

Network#

To carry out this exercise, the machines, a Windows 10 client and a Linux server, Lubuntu, will be on the same virtualized LAN network, SAMBA_LAN.

The network will be 10.0.0.0/24, and both machines will have a static IP. The DC controller will have 10.0.0.10 and the client will have 10.0.0.20.

In addition, both machines will use the DC, 10.0.0.10, as DNS.

Name resolution#

In the Linux server’s /etc/hosts file:

10.0.0.10 smb-dc.inaki.lan smb-dc

Where smb-dc.inaki.lan and smb-dc are the server’s NetBIOS names.

Installation#

A set of packages must be installed. Depending on the distribution, this will be done in one way or another. For an Ubuntu-based distribution:

sudo apt update && sudo apt upgrade
sudo apt install samba krb5-config winbind smbclient

During the Kerberos installation, it will ask for the realm INAKI.LAN, the Kerberos server name SMB-DC.INAKI.LAN, and the administrative server name SMB-DC.INAKI.LAN.

Once the installation is finished, it is necessary to move the /etc/samba/smb.conf file in order to proceed with the configuration:

sudo mv /etc/samba/smb.conf /etc/samba/smb.conf.old

Next, the machine must be promoted as a domain controller. To do this, run the following command:

sudo samba-tool domain provision

The values to enter are:

• Realm: INAKI.LAN
• Domain: INAKI
• Server Role: dc
• DNS backend: SAMBA_INTERNAL
• DNS forwarder IP address: 127.0.0.53

Finally, copy the Kerberos configuration file:

sudo cp /var/lib/samba/private/krb5.conf /etc/

Additional settings#

Next, adjust name resolution. First, stop the related services:

sudo systemctl stop smbd nmbd winbind systemd-resolved

Then disable them so that they do not start automatically after a reboot:

sudo systemctl disable smbd nmbd winbind systemd-resolved

It is important to run both commands and make sure they execute correctly.

Next, make sure that the samba-ad-dc service can start without issues by removing any existing masking:

sudo systemctl unmask samba-ad-dc

Run the command to verify that there are no errors.

Then delete the resolv.conf file. To check it, view its directory entry:

sudo ls -l /etc/resolv.conf

If the check is correct, remove the link with:

sudo rm /etc/resolv.conf

And create a new resolv.conf file:

domain inaki.lan
nameserver 127.0.0.1

Finally, start and enable the samba-ad-dc service:

sudo systemctl start samba-ad-dc
sudo systemctl enable samba-ad-dc

Checks#

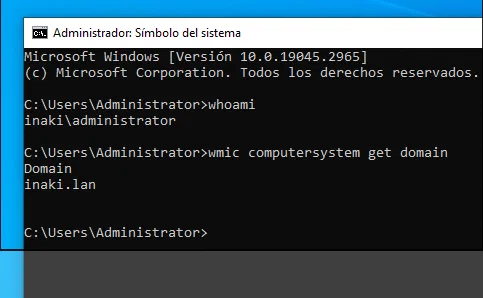

If everything has gone correctly, a Windows client can be joined to the domain.

Users, groups and GPOs#

Once inside the domain, the next step will be to create users, groups, OUs and GPOs.

To do this, the following capability must be enabled from PowerShell:

Get-WindowsCapability -Name RSAT* -Online | Add-WindowsCapability -Online

Active Directory Users and Computers#

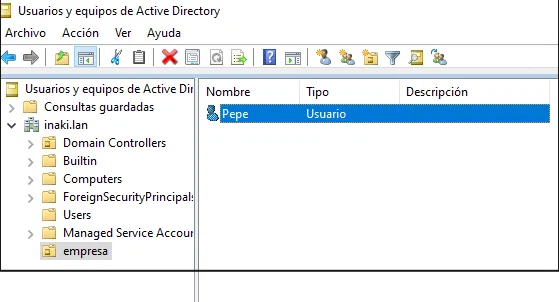

After installing the tools, the Active Directory controller can be managed directly from the Windows client using the Administrator user:

GPOs#

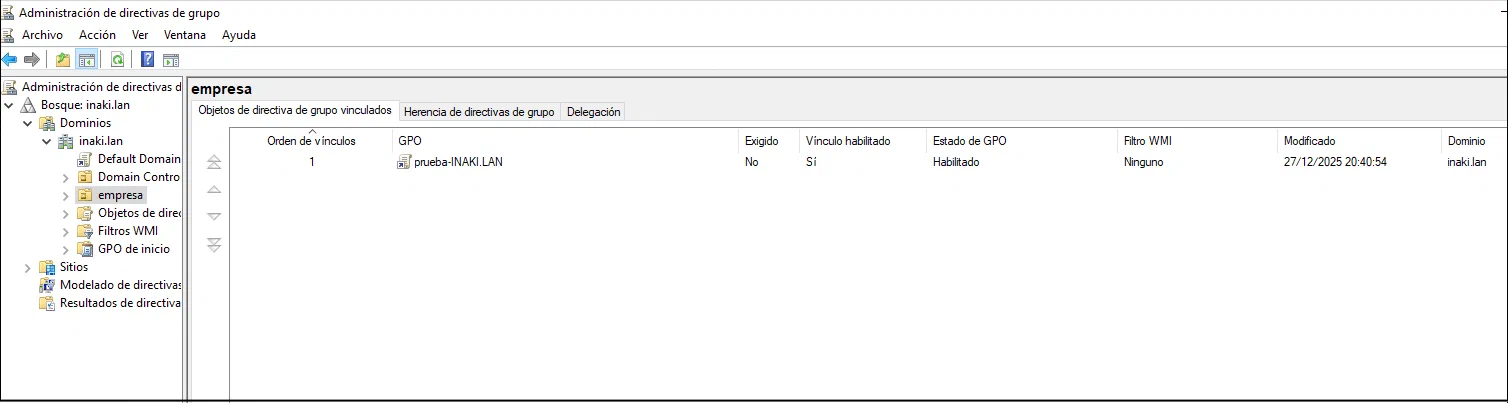

In the same way, it is possible to create and link group policies:
